Brand: Acti Corp. Usa
|
SKU:
10496798

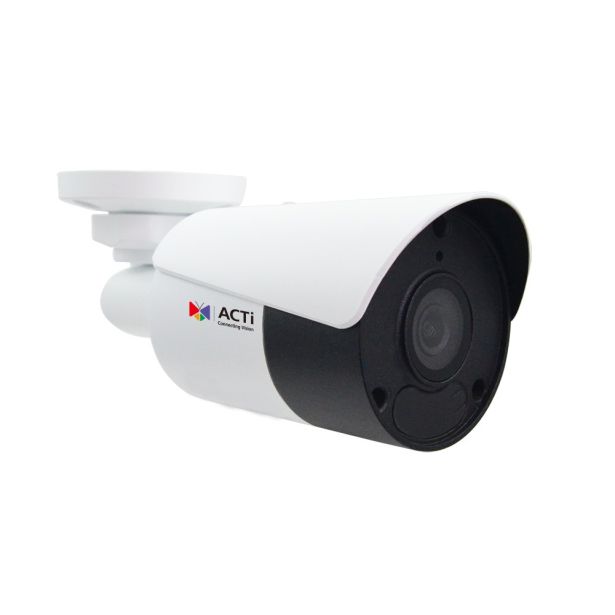

Acti Z310 | 8MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Regular price
$609.03
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acti Z310 | 8MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SL...
Regular price
$609.03
Unit price
Brand: Acti Corp. Usa
|
SKU:
10496798
Regular price
$609.03
Unit price
Description
Description
Acti Z310 | 8MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Acti - Z310 - Features
- 8 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.6
- Superior WDR
- Wide Angle
Specifications
Specifications
Acti - Z310 - Specifications
| Product Type | Mini Bullet |
|---|---|
| Maximum Resolution | 8MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.005 lux at F1.6 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 99° |
| Vertical Viewing Angle | 55.3° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Power Source | DC 12V (adapter not included), PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.5 W (PoE) |
| Weight | 450g (0.99lb) |
| Dimensions | (W x H x D): 73mm x 71mm x 190mm (2.9" x 2.8" x 7.5") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Approvals | CE Class B, FCC Class B, IP68, IK10 (metal casing), UL Listed |
| Color | White |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
