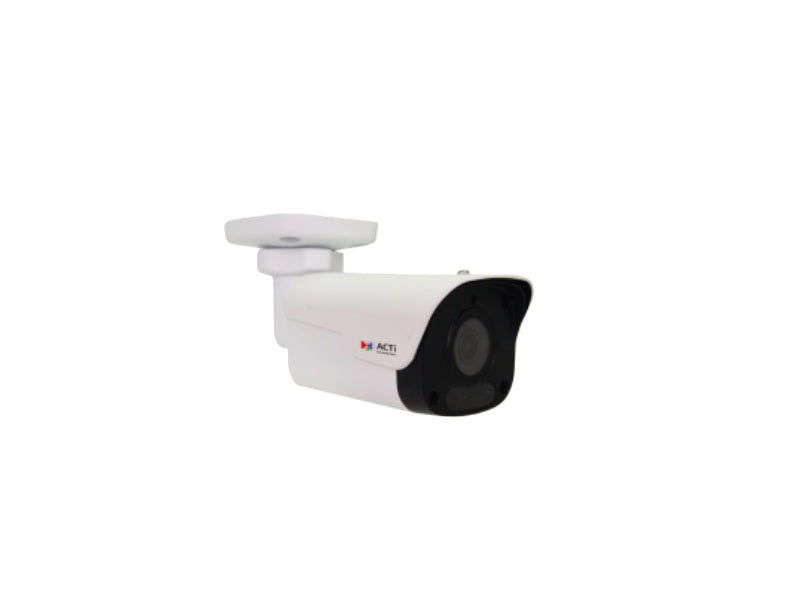

Acti Z316 | 2MP D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Acti - Z316 - Features
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens, f2.8mm/F2.0
- Superior WDR (120dB)
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
Specifications
Specifications
Acti - Z316 - Specifications
| Product Type | Mini Bullet |
|---|---|
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.01 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Focal Length | Fixed focal, f2.8mm |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), MJPEG |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Event Trigger | Video motion detection (4 regions), Sound detection, Intelligent event detection |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 7 W (DC), 7 W (PoE) |
| Dimensions | (W x H x D): 62mm x 63mm x 166mm (2.5" x 2.5" x 6.5") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Mount Type | Pole Mount |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10% - 95% RH, non-condensing |
| Surge Protection | 4KV |
