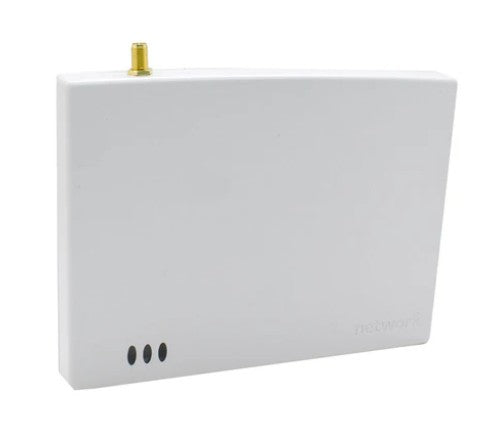

Alarm Lock AL-IM3-80211 | Generation 3 Hardwire and Wireless Gateway, RJ45 Ethernet Port Configuration
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alarm Lock AL-IM3-80211 | Generation 3 Hardwire and Wireless Gatewa...
Description
Description
The trilogy networx 3rd generation gateways interface up to 63 networx locks with a PC network. The new 8211 model now features networking via either a hardwire Ethernet connection and/or wirelessly via a bi-directional radio. Similar in function to the original networx gateway modules and able to be intermixed with them, but now featuring dual mode installation flexibility and new offline pre-configuration from any smart device or PC/laptop, enabling setup prior to getting on the job-site. Gen 3 gateways require DL-WINDOWS version 5.5 +, support up to 7 of the same AL-IME2 Expanders (which extend the range up to 1 ft. ), three LED indicators display Gateway's operational status.
Alarm Lock - AL-IM3-80211 - Features
- Generation 3 Gateways are compatible with DL-WINDOWS version 5.5.4 and later only
- Generation 3 Gateways can be mixed into an existing system that includes older “non-version 3” gateways
Specifications
Specifications
Alarm Lock - AL-IM3-80211 - Product Categories
- Networking and Wireless
- Networking
- LAN
- Gateways
Alarm Lock - AL-IM3-80211 - Specifications
| Manufacturer Name | Alarm Lock |
|---|---|
| Manufacturer Part Number | AL-IM3-80211 |
| Item Description | Generation 3 Hardwire and Wireless Gateway, RJ45 Ethernet Port Configuration |
| Amperage | 650 mA |
| Color | Blue |
| Depth | 1.94 in. |
| Dimensions | WxDxH: 6 x 1.94 x 4.5 in. |
| Frequency | 2.412 to 2.484GHz |
| Height | 4-1/2 in. |
| Interface | Ethernet 10Base-T or 100Base-TX |
| Mounting Location | Wall-Mount |
| Operating Temperature - Maximum | 140 F |
| Operating Temperature - Minimum | -4 F |
| Operating Temperature | -4 to +140 F |
| Port Configuration | RJ45 Ethernet |
| Product Type | TCP/IP COMPONENT |
| Voltage | 5 to 6 VAC |
| Width | 6 in. |
