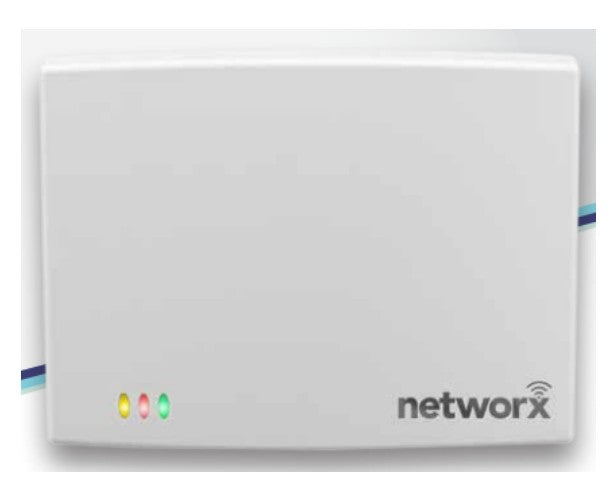

Alarm Lock AL-IME2-EXP-POE | Expander Module, Ethernet Network, 5 to 6 VAC Input, 5 to 6 VDC Output, 10 mW, RJ45
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alarm Lock AL-IME2-EXP-POE | Expander Module, Ethernet Network, 5 t...
Description
Description
The Trilogy Networx„ AL-IME2-EXP-POE "Power Over Ethernet" Expander extends the coverage area of version 2 series Gateways, allowing control of up to its rated maximum of 63 Networx locks per Gateway. Installation is simple, with the AL-IME2-EXP-POE only requiring access to one RJ-45 Ethernet network cable. ALIME2-EXP-POE Expanders are cost-effective, and feature a simplified 'Plug and Play' setup where the Networx system automatically identifies all newly powered Expanders and quickly determines the best wireless signal pathways. Up to 7 Expanders can be added to one version 2 series Gateway.
Alarm Lock - AL-IME2-EXP-POE - Features
- Less costly, Expanders can be used in place of additional Gateways
- Extends wireless lock signal coverage
- Reach otherwise troublesome locks in areas of insufficient signal strength
- Allows for easier (flexible) positioning of version 2 Gateways
Specifications
Specifications
Alarm Lock - AL-IME2-EXP-POE - Product Categories
- Networking and Wireless
- Networking
- Industrial LAN
- Industrial Power Over Ethernet
Alarm Lock - AL-IME2-EXP-POE - Specifications
| Manufacturer Name | Alarm Lock |
|---|---|
| Manufacturer Part Number | AL-IME2-EXP-POE |
| Item Description | Expander Module, Ethernet Network, 5 to 6 VAC Input, 5 to 6 VDC Output, 10 mW, RJ45 |
| Amperage | 650 mA |
| Connection Type | RJ45 |
| Current Rating | 650 mA |
| Depth | 1.94 in. Enclosure |
| Dimensions | WxHxD: 6 x 4.5 x 1.94 in. |
| Frequency | 2.4 GHz, 900 MHz |
| Height | 4.5 in. Enclosure |
| Input Voltage | 5 to 6 VAC |
| Mounting Location | Ceiling/Wall-mount |
| Network Technology | Ethernet |
| Number of Ports | 1 Port |
| Operating Temperature - Maximum | 60 C |
| Operating Temperature - Minimum | -20 C |
| Operating Temperature | -20 to +60 C |
| Output Voltage | 5 to 6 VDC |
| Port Configuration | 1 x RJ45 |
| Power Consumption | 10 mW |
| Product Type | Expander Module |
| Special Rating | 650 mA |
| Temperature Rating | -20 to 60 C |
| Voltage | 5 to 6 VDC |
| Width | 6 in. Enclosure |
