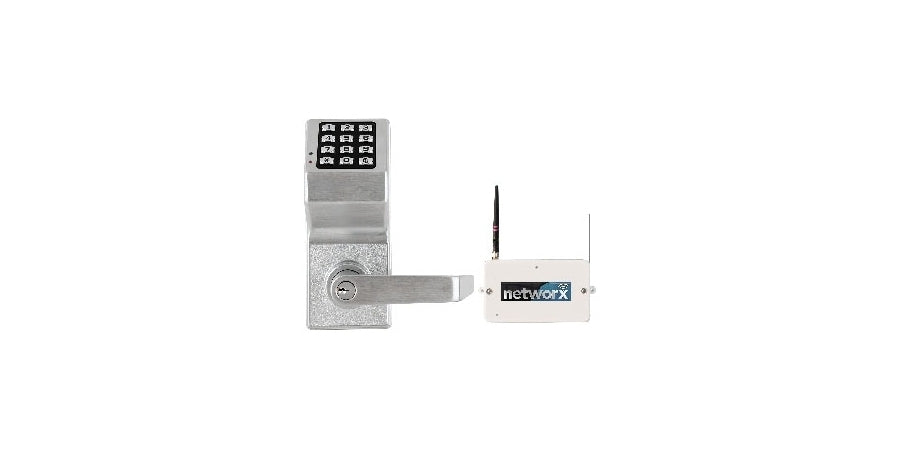

Alarm Lock DL6100/26D | Digital Door Lock, Function, Storeroom Lock, Locking State, Fail-Secure
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alarm Lock DL6100/26D | Digital Door Lock, Function, Storeroom Lock...
Description
Description
Trilogy Networx, locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via ethernet or 802.11B/G, while providing all original Trilogy standalone lock's functionality. They provide a quick, easy, economical access system with advanced features and functions, like automatic schedules, event logs and support for 2000 doors and 5000 existing Prox. ID cards/badges, but with no wires to run and no access panels or power supplies to buy or install. At its simplest, it's one grade 1 durable wireless lock per door, installed in about an hour, all communicating to a single gateway (each gateway controls up to 63 locks), networked to any non-dedicated windows-based PC.
Alarm Lock - DL6100/26D - Features
- Heavy-duty ANSI Grade 1 wireless door lock
- Cylindrical deadlatch locking mechanism
- Supports up to 5000 users via 3-6 digit PINs
- Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx lock, or the network's PC
- Operates on (4) C size batteries that are included
- Unsurpassed 5-year+ battery life; no supplementary power supplies needed
- Wireless programming requires DL-Windows software (Download FREE at Alarmlock.com website) and Networx Gateway (sold separately)
- Manage up to 63 locks per AL-IME2 gateway, and 2000 locks system wide using gateways and wireless expanders
- On demand user, and user group scheduling (500 timed schedule capacity)
- On demand audit trail reporting with time/date stamp (Prior 35,000 events)
- Offline programming may be done at the DL6100's 12-button keypad
- Uninterrupted Door Access Usage: Lock retains all programming and data even in the event of power outage or server offline occurrence
- Bi-directional communication using highest level of commercially available encryption (128-bit AES PC)
- Remote System Management: Accomplished with VPN/remote capability
Specifications
Specifications
Alarm Lock - DL6100/26D - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Electrified Door Locks
Alarm Lock - DL6100/26D - Specifications
| Manufacturer Name | Alarm Lock |
|---|---|
| Manufacturer Part Number | DL6100/26D |
| Item Description | Digital Door Lock, Function, Storeroom Lock, Locking State, Fail-Secure |
| Cylinder Type | 6-Pin Std Cylinder |
| Design | Flat Lever with Return |
| Finish | US26D Satin Chrome |
| Function | Storeroom Lock |
| Grade | ANSI Grade 1 |
| Keyway | Schlage C |
| Locking State | Fail-Secure (Power to Unlock) |
| Product Type | 12-Button Digital Door Lock |
| Solenoid Duty | Intermittent-Duty |
| Special Rating | UL Listed |
| Throughbolt Pattern | 0.236 in. Center to Center |
| UL Listed | Yes |
| Voltage | BATTERY |
