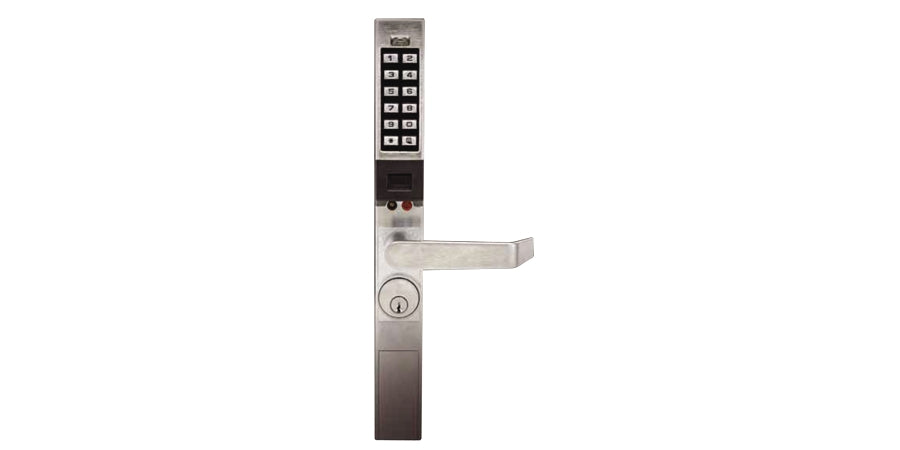

Alarm Lock PDL1300ET/26D | Electric Door Lock, Function, Exit Device - Narrow Stile, Intermittent-Duty, Schlage C Keyway

Alarm Lock - PDL1300ET/26D - Features

• Wire-free, heavy-duty, card access control system for narrow stile exit doors
• Retrofits traditional keyed-in aluminum glass panic door applications
• Exit Device Compatibility: Jackson 1095 (must use DL1350), Von Duprin 33, Dorma 5300, Arrow S4803, DCI 1200, DCI 1300, & Corbin ED7000, ED4000. (NOTE: With Von Duprin devices, the DL/PDL1200/1300ET only works on a RHR door. On a LHR door the lever must be lifted for it to operate. Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob) (You may use your own bar, or purchase one from us at checkout - we offer the Von Duprin 33 and Arrow S4803 models for narrow stile doors)
• Sold as outside trim only. (Panic bar not included)
• Must purchase separate TP assembly; compatible tailpiece that connects the PDL1300ET to your existing bar. (Order TP Kit separately at checkout)
• Field proven familiar Trilogy name
• Enrolled users gain access by card only, PIN only, or highest security - card + PIN
• 2000 PIN code capacity
• Program at lock, or using Windows PC based software
• Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules. Program lock to auto lock at certain times, or auto-unlock. Program times when certain users or groups of users can gain access
• Multi-level user setup: Master, Manager, Supervisor and Basic Users
• Program one-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
• WeatherPROOF performance
• Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
