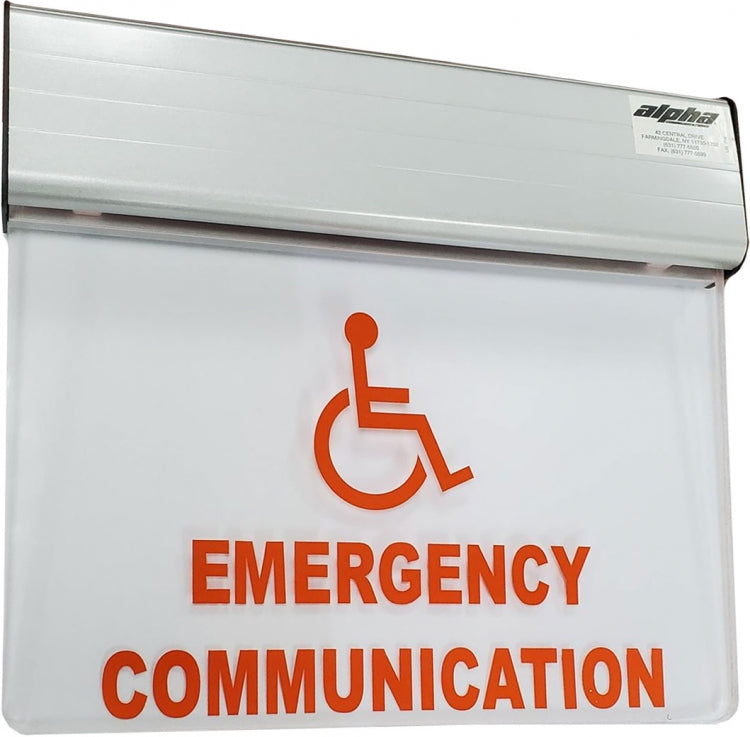

Alpha Communications RSN7050E | 120V Emergency Communicator Sign - Red - Single
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Communications RSN7050E | 120V Emergency Communicator Sign - ...
Description
Description
The Alpha Communications® RSN7050E (single sided) and RSN7050ED (double sided) Lighted Emergency Communication Signs are used with the AlphaRefuge™ 2100 and 2400 Series Area of Refuge systems, and can be used with other manufacturer's ARA systems. The RSN7050E Series signs are powered by 120/277VAC and have built-in battery back-up and LED Lights, to comply with the current building codes. Typically, one RSN7050E Series sign would be placed at each "Emergency Communication" location, to identify that location for building visitors and residents, for ARA code compliance
With Battery Back-Up Included - Single Sided
Alpha Communications - RSN7050E - Features
- Note(s)
- Features:- Power: 120/277vac (4w, 350mA)- Battery Back-up- Red LED Lights- Constant Uniform Illumination- UL Listed to meet UL 924, NEC, OSHA, NFPA and Life Safety Code Illumination requirements- Sign should be mounted above 60" but below 80" from the finish floor to top of the sign- White Aluminum housing with Acrylic surface- Voltage Surge and Short Circuit protection- Directional Arrows Included (Set of 3)
Specifications
Specifications
Alpha Communications - RSN7050E - Product Categories
- Audio and Visual
- Mass Notification
- Other Mass Notification
Alpha Communications - RSN7050E - Specifications
| Brand Name | Alpha Communications |
|---|---|
| Manufacturer Part Number | RSN7050E |
| Item Description | 120V Emergency Communicator Sign - Red - Single |
| UNSPSC Code | 45111800 |
| Outside Dimensions | 14.00"W x 10.50"H x 3.00"D (356mm W x 267mm H x 76mm D) |
Documents and Downloads
Documents and Downloads
- Alpha Communications RSN7050E Specification Sheet
- American Wire Gauge (AWG) to Metric Wire Gauge/Size Conversion Chart
- AlphaRefuge 2100 Series Area of Refuge Block Wiring Diagram
- AlphaRefuge 2100 Series Area of Refuge Installation Manual (Version 1 - Systems Pre-October 2013) - 16 pages
- RCB2100 Series AlphaRefuge Area of Refuge Operation and Programming Guide
