Brand: Alpha Wire
|
SKU:
A6084C

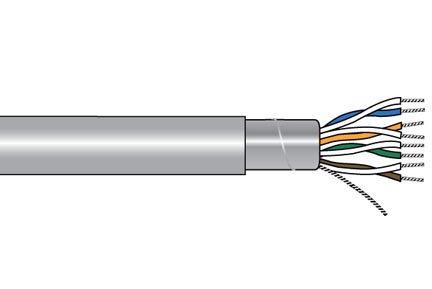

Alpha Wire 6084C SL001 | Communication-Control-Industrial-Cable, 4 Pair, 24 AWG, Foil, 300 V, PVC Jacket, HDPE Insulation, 0.254 Jacket Diameter, 0.035 Jacket Thickness, 7/32 Stranding
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6084C SL001 | Communication-Control-Industrial-Cable, 4 ...
Regular price
$3.00
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 PAIR |
|---|---|
| Conductor | 24 (7/32) AWG TC |
| Insulation | 0.010" Wall, Nom. Polyethylene, High Density |
| Color Code | Alpha Wire Color Code M |
| Pair | 2/Cond Cabled Together |
| Twists: | 2 - 6 Twists/foot (approx.) |
| Cable Assembly | 4 Components Cabled |
| Twists: | 4.8 Twists/foot (min) |
| Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 24 (7/32) AWG TC |
| Jacket | 0.035" Wall, Nom.,PVC |
| Color(s) | SLATE |
| ALPHA WIRE-* P/N 6084C 4PR 24 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2919 LOW VOLTAGECOMPUTER CABLE --- LLXXXXXX CSA TYPE CMG 60C FT4CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 32 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Ground Capacitance | 30 pf/ft @1 kHz, Nominal |
| Characteristic Impedance | 93 ? |
| Inductance | 0.19 µH/ft, Nominal |
| Conductor DCR | 26 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 11.5 ?/1000ft @20°C, Nominal |
