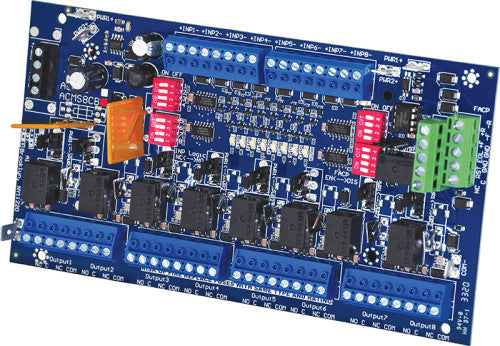

Altronix ACMS8CB | Dual Input Access Power Controller, 8 PTC Protected Outputs, Board

Altronix - ACMS8CB - Features and Specifications

• INPUT
• Two (2) independent low voltage inputs.
• 1) Input: 12 or 24VDC from eFlow series Altronix Power supply.
• 2) Input: 12 or 24 VDC from eFlow series Altronix power supply or either 5 or 12 VDC from VR6 Regulator.
• Voltage Range
• 16A total input.
• Main PTC Rating 9A.
• Current Consumption:
• 0.6A @ 12V, 0.3A @ 24V with all relays energized.
• Trigger Inputs
• Eight (8) individually controlled trigger inputs:
• a) Normally open (NO) inputs.
• b) Normally closed (NC) inputs.
• c) Open collector sink inputs.
• d) Wet Input (5VDC - 24VDC) with 10K resistor.
• e) Any combination of the above.
• Output Ratings
• PTCs are rated 2A each.
• Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
• Fire Alarm Disconnect
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Fire Alarm disconnect input options:
• a) Normally open [NO] or normally closed [NC] dry contact input. Polarity reversal input from FACP signaling circuit.
• FACP output relay [NC] contact or provides 10k resistance with [EOL JMP] intact.
• LED Indicators
• Red LEDs indicate outputs are triggered.
• Blue LED indicates FACP disconnect is triggered.
• Individual voltage LEDs
• Green: 12VDC
• Red: 24VDC.
