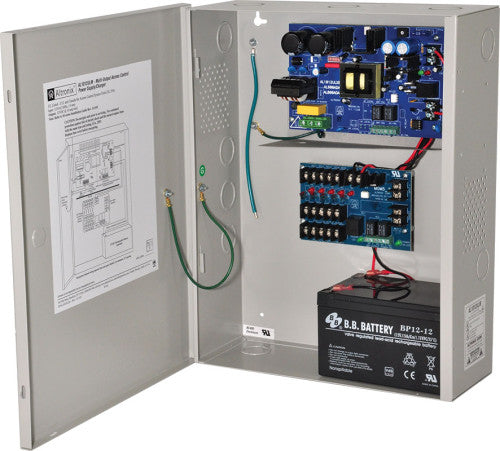

Altronix AL1012M220 | Access Power Distribution Module w/ Power Supply/Charger, 5 PTC Class 2 Outputs, 12VDC @ 10A, FAI, 220VAC, BC400 Enclosure
Regular price
$414.50
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL1012M220 | Access Power Distribution Module w/ Power Sup...
Regular price
$414.50
Unit price
Brand: Altronix
|
SKU:
673216
Regular price
$414.50
Unit price
Description
Description
AL1012M220 multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 220VAC 50/60Hz input into five (5) individual PTC protected 12VDC outputs (see specifications). Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to one (1) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Input
- Input 220VAC 50/60Hz, 2.2A.
- Input fuse rated @ 5A/250V.
- Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.
Output
- 12VDC outputs.
- 10A supply current.
- Five (5) (auto-resettable) individual PTC protected outputs, rated @ 2A.
- Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC).
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Current limit is 2A per output.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
Supervision
- AC fail supervision (form "C" contact).
- Low battery supervision (form "C" contact).
- Battery presence supervision (form "C" contact).
- Power fail supervision relay (form "C" contact rated 1A @ 28VDC).
Visual Indicators
- DC output LED indicator.
- LEDs indicate condition of power outputs.
- Power & input trigger LEDs.
Weights (approximate)
| Product Weight | 8.95 Lbs. (4.06 kg). |
|---|---|
| Shipping Weight | 10.25 Lbs. (4.65 kg). |
