Brand: Altronix
|
SKU:
1030389

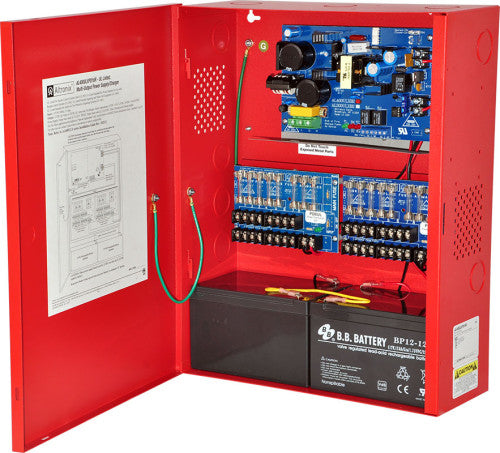

Altronix AL400ULXPD16R | Power Supply Charger, 16 Fused Outputs, 12/24VDC @ 4A, 115VAC, BC400 Enclosure
Regular price
$347.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400ULXPD16R | Power Supply Charger, 16 Fused Outputs, 12...
Regular price
$347.12
Unit price
Description
Description
Altronix AL400ULXPD16R | Power Supply Charger, 16 Fused Outputs, 12/24VDC @ 4A, 115VAC, BC400 Enclosure
AL400ULXPD16R is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) Class 2 Rated 12VDC or 24VDC power limited outputs.
AL400ULXPD16R is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) Class 2 Rated 12VDC or 24VDC power limited outputs.
Altronix - AL400ULXPD16R - Features and Specifications
- INPUT
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Sixteen (16) Class 2 Rated fuse protected powerlimited outputs.
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications
Altronix - AL400ULXPD16R - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
- 1.125" and 1.375" combination knockouts.
Altronix - AL400ULXPD16R - Visual Indicators
- AC input and DC output LED indicators.
Altronix - AL400ULXPD16R - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 402.5VA.
Altronix - AL400ULXPD16R - Specifications
| Amps | 3.1 TO 4.0 |
|---|---|
| Product Type | BOXED POWER SUPPLY |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Lock | KEY LOCK |
| Sales Category | ELECTRIC BOXED POWER SUPPLY |
| Output Voltage | SELECTABLE 12 OR 24 VOLTS DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - AL400ULXPD16R - Weights (approximate)
| Product Weight: | 7.3 Lbs. (3.31 kg). |
|---|---|
| Shipping Weight | 9.1 Lbs. (4.13 kg). |
