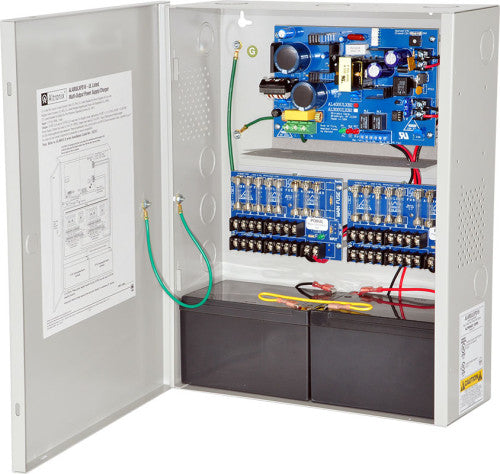

Altronix AL400XPD16220 | Power Supply Charger, 16 Fused Outputs, 12/24VDC @ 4A, 220VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.
• Input fuse rated @ 3.5A/250V.

Output

• 12VDC or 24VDC selectable output.
• 12VDC @ 4A or 24VDC @ 3A supply current.
• Sixteen (16) fuse protected outputs.
• Outputs are rated @ 3.5A.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)
