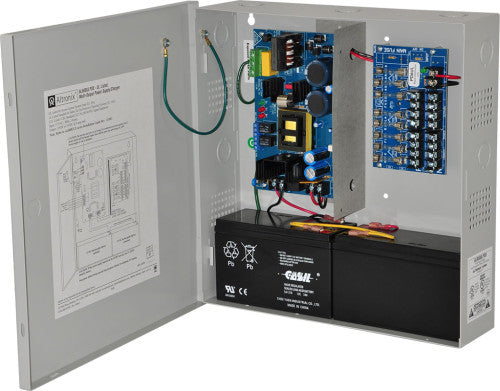

Altronix AL600PD8220 | Power Supply Charger, 8 Fused Outputs, 12/24VDC @ 6A, 220VAC, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.

Output

• 12VDC or 24VDC selectable output.
• 6A continuous supply current.
• Eight (8) fuse protected outputs.
• Output fuses are rated @ 3.5A/250VAC.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input, DC output and BAT trouble.

Weights (approximate)
