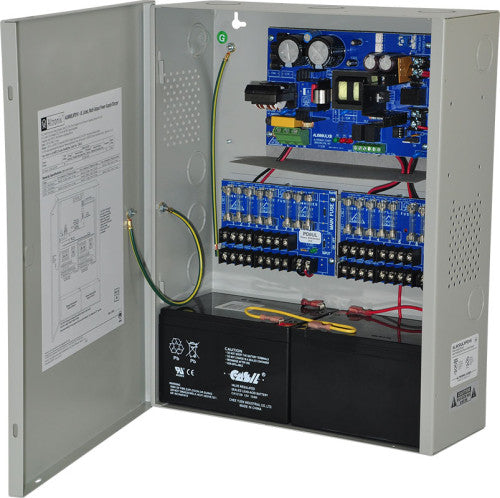

Altronix AL600XPD16220 | Power Supply Charger, 16 Fused Outputs, 12/24VDC @ 6A, 220VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.

Output

• 12VDC or 24VDC selectable output.
• 6A continuous supply current.
• Sixteen (16) fuse protected outputs.
• Output fuses are rated @ 3.5A/250VAC.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input, DC output and BAT trouble.

Weights (approximate)
