Brand: Altronix
|
SKU:
1030390

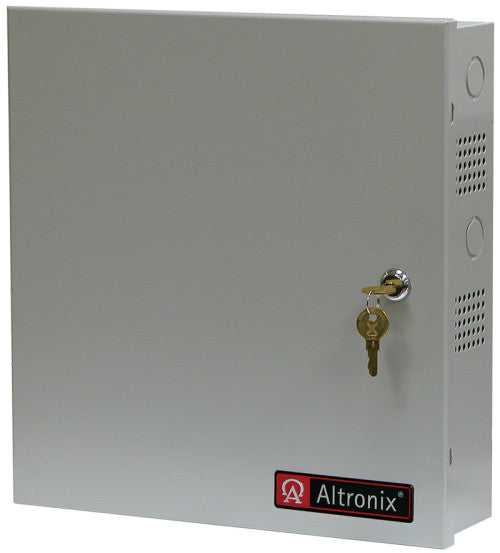

Altronix ALTV1224DC1CB | CCTV Power Supply, 16 PTC Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure
Regular price
$270.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV1224DC1CB | CCTV Power Supply, 16 PTC Outputs, 12/24VD...
Regular price
$270.82
Unit price
Description
Description
Altronix ALTV1224DC1CB | CCTV Power Supply, 16 PTC Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure
ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current.
ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current.
Altronix - ALTV1224DC1CB - Features and Specifications
- INPUT
- Input 115VAC, 50/60 Hz, 1.45A.
- OUTPUT
- Sixteen (16) PTC protected outputs (auto-resettable).
- 12VDC or 24VDC.
- 4A total continuous supply current (0.25A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
Specifications
Specifications
Altronix - ALTV1224DC1CB - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - ALTV1224DC1CB - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 49 BTU/Hr.
- System AC input VA requirement: 166.75VA.
- Features
Altronix - ALTV1224DC1CB - Specifications
| Amps | 3.1 TO 4.0 |
|---|---|
| Product Type | BOXED POWER SUPPLY |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Lock | KEY LOCK |
| Sales Category | CCTV POWER SUPPLY |
| Output Voltage | SELECTABLE 12 OR 24 VOLTS DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - ALTV1224DC1CB - Weights (approximate)
| Product Weight: | 7.9 Lbs. (3.58 kg). |
|---|---|
| Shipping Weight | 8.8 Lbs. (3.99 kg). |
