Altronix ALTV244300CB | CCTV Power Supply, 4 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, BC100M Enclosure
Altronix ALTV244300CB | CCTV Power Supply, 4 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, BC100M Enclosure

Altronix ALTV244300CB | CCTV Power Supply, 4 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, BC100M Enclosure

Part Number: ALT-ALTV244300CB
0 Review(s)
Write a Review
Availability:
$128.61
Retail Price:$135.95
Your Savings:$7.34(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

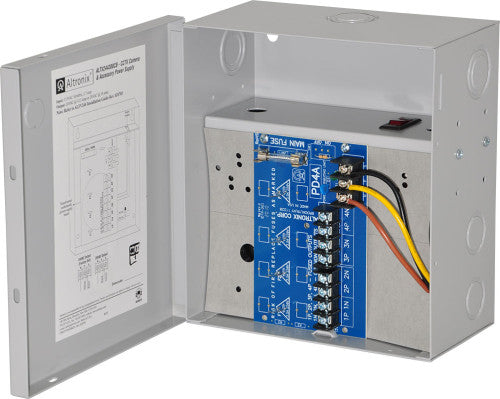

ALTV244300CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.5 mm D).
  • 1/2" and 3/4" combination knockouts.



https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • Secondary fuse rated @ 15A/32V.
  • AC power LED.
  • Power ON/OFF switch.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • 115VAC, 50/60Hz, 2.7A.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

  • Four (4) PTC protected outputs (auto-resettable).
  • 24VAC @ 12.5A (300VA) supply current (3.13A per device, 2.5A max.) or 28VAC @ 10A (300VA) supply current (2.5A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Surge suppression.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Electrical

  • Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%
  • BTU/Hr (approx.):
  • 24VAC: 123 BTU/Hr.
  • 28VAC: 143 BTU/Hr.
  • System AC input VA requirement: 310.5VA.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight11.1 Lbs. (5.034 kg).
Shipping Weight11.7 Lbs. (5.307 kg).



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix ALTV244300CB Data SheetClick to View
Altronix ALTV244300CB Data SheetClick to View
Altronix ALTV244300CB Fichas TecnicasClick to View
Altronix ALTV244300CB Installation InstructionsClick to View
Altronix ALTV244300CB Altronix_ALTV244300CB_CCTV_Power_Supply_Installation_Instructions_prior_to_Jan._2015.pdfClick to View
Altronix ALTV244300CBGuia de InstalacionClick to View
Altronix ALTV244300CB CAD DrawingClick to View
Altronix ALTV244300CB Lifetime WarrantyClick to View
