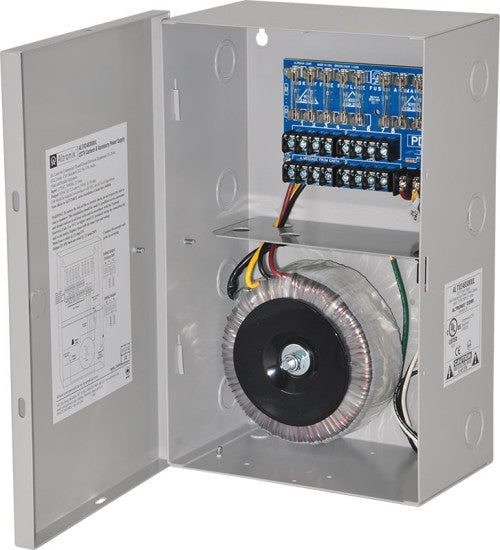

Altronix ALTV248300220 | CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 14A, 220VAC, BC200 Enclosure
Regular price
$401.79
Unit price
Shipping calculated at checkout.
Description
Description
ALTV248300220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Secondary fuse rated @ 15A/32V.
- AC power LED.
- Power ON/OFF switch.
- Spare fuses provided. (all models w/primary and/or secondary fuses).
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 220VAC, 50/60Hz, 1.35A.
Output
- Eight (8) fuse protected outputs.
- 24VAC @ 14A (350VA) supply current (1.75A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (1.563A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VAC: 154 BTU/Hr.
- 28VAC: 143 BTU/Hr.
- System AC input VA requirement: 297VA.
Weights (approximate)
| Product Weight | 11.4 Lbs. (5.17 kg). |
|---|---|
| Shipping Weight | 12.4 Lbs. (5.62 kg). |
