Brand: Altronix | SKU: 730515

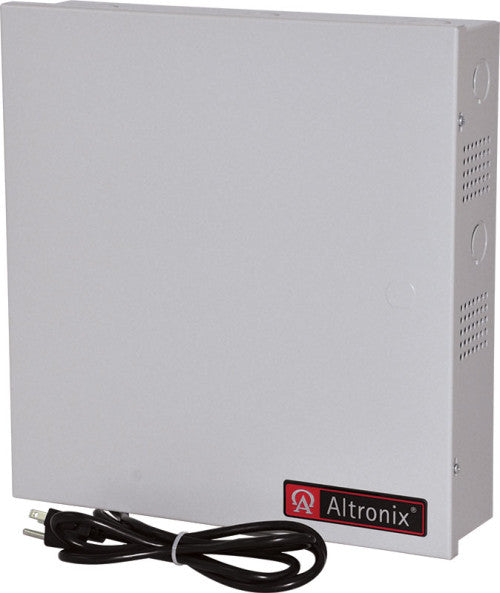

Altronix ALTV615DC616UL3 | CCTV Power Supply, 16 Fused Outputs, 6-15VDC @ 6A, 115VAC, BC300 Enclosure, includes 3-wire line cord

$373.96

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV615DC616UL3 provide 6VDC to 15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.

Main Features

AC input and DC output LED indicators.
Factory installed 3-wire line cord.
Illuminated power disconnect circuit breaker with manual reset.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

Input 115VAC, 50/60 Hz, 0.9A.

Output

Sixteen (16) fuse protected outputs.
6VDC to 15VDC field adjustable.
6A total continuous supply current (0.375A per device, 3.5A max.).
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated outputs.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 18-46 BTU/Hr.
System AC input VA requirement: 103.5VA.

Weights (approximate)

Product Weight	14.3 Lbs. (6.49 kg).
Shipping Weight	14.8 Lbs. (6.71 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)	https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment	https://iq.ulprospector.com/en/profile?e=2863922
