Brand: Altronix
|
SKU:
364522

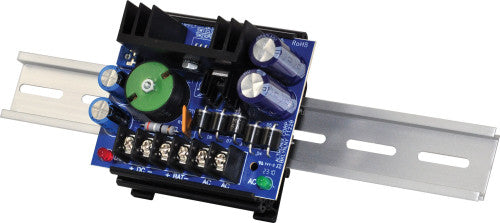

Altronix DPS5 | Power Supply Charger, Single Output, 6/12/24VDC @ 4A, 16 to 28 VAC, Includes ST3 for DIN Rail Mounting
Regular price
$90.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix DPS5 | Power Supply Charger, Single Output, 6/12/24VDC @ 4...
Regular price
$90.07
Unit price
Description
Description
Altronix DPS5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Main Features
- Extremely compact design.
- Includes battery leads.
- Snap Track compatible (order Altronix model number ST3).
Specifications
Specifications
Dimensions (approximate)
- 3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).
Input
- 6VDC applications use TP1640.
- 12VDC applications use T2428100.
- 24VDC applications use T2428175.
Output
- 6VDC, 12VDC or 24VDC selectable output.
- 4.0A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Battery short circuit protection (circuit breaker).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 0.35 Lbs. (0.16 kg). |
|---|---|
| Shipping Weight | 0.5 Lbs. (0.23 kg). |
