Brand: Altronix
|
SKU:
920965

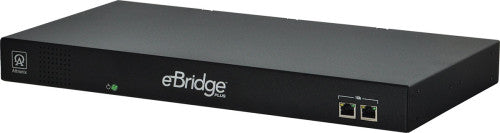

Altronix EBRIDGE800E | EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch, 100Mbps per port, 1U, Requires Compatible Transceiver
Regular price
$2,279.25
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EBRIDGE800E | EoC 8 Port Receiver with Integrated 240W PoE...
Regular price
$2,279.25
Unit price
Brand: Altronix
|
SKU:
920965
Regular price
$2,279.25
Unit price
Description
Description
Altronix eBridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control and report power and diagnostics from anywhere.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 2.5"D (486 mm W x 42 mm H x 64 mm D).
Input
- 115VAC 60Hz, 3.25A or 230VAC 50/60Hz, 2.0A.
Power Output
- 8-ports maximum power: 30W full power per port (PoE+) - 240W total power.
- Generates PoE/PoE+ up the coax to eBridge transceiver.
Ethernet over Coax
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- Each port rated at 100Mbps at distances up to 300m.
- Connectivity: BNC, RG-59/U or similar.
Ethernet Uplink Ports
- Two (2) 1Gb uplink (100/1000 Mbps).
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5 or better structured cable.
- Distance: up to 100m.
LED Indicators
- Blue LED - Coax link connection.
- Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
- Green LED - Power.
Weights (approximate)
| Product Weight | 6 Lbs. (2.72 kg). |
|---|---|
| Shipping Weight | 8 Lbs. (3.63 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
