Brand: Altronix
|
SKU:
10216120

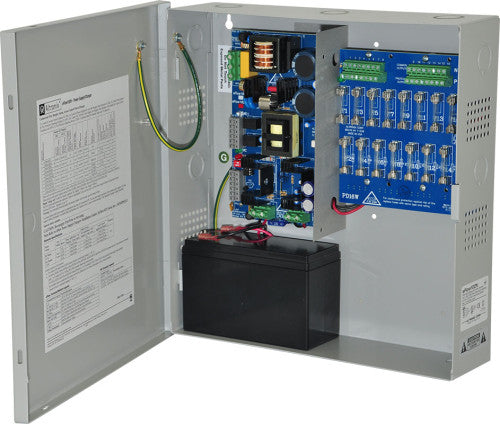

Altronix EFLOW102NX16V | Power Supply Charger, 16 Fused Outputs, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
Regular price
$461.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW102NX16V | Power Supply Charger, 16 Fused Outputs, 12...
Regular price
$461.54
Unit price
Description
Description
Altronix eFlow102NX16V is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) fuse protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to one (1) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Input
- 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
- Input fuse: 5A/250V.
Output
- Sixteen (16) fuse protected outputs.
- Outputs are rated @ 2.5A.
- 12VDC @ 10A supply current.
- Auxiliary output rated @ 1A (unswitched).
- Overvoltage protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail and presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% (depending on the power supply). Prevents deep battery discharge.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Weights (approximate)
| Product Weight | 8.75 Lbs. (3.97 kg). |
|---|---|
| Shipping Weight | 9.85 Lbs. (4.47 kg). |
