Brand: Altronix | SKU: 506943

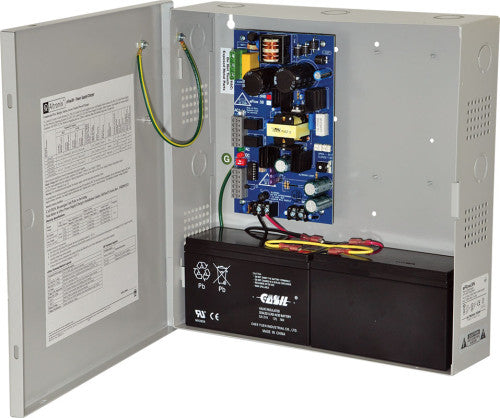

Altronix EFLOW3N | Power Supply Charger, Single Output, 12/24VDC @ 2A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

$291.16

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix eFlow3N is a power supply/charger converts a 120VAC 60Hz input into a single Class 2 power-limited output. Power supply/charger is selectable for 12VDC or 24VDC with a total of 2A max. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

120VAC, 60Hz, 3.5A.
Input fuse: 5A/250V.

Output

12VDC or 24VDC selectable output.
12VDC or 24VDC @ 2.0A supply current.
Class 2 power-limited output.
Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched).
Overvoltage Protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail & presence supervision (form "C" contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units(depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Weights (approximate)

Product Weight	6.3 Lbs. (2.86 kg).
Shipping Weight	7.2 Lbs. (3.27 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1606
cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603)	https://iq.ulprospector.com/en/profile?e=2087

Documents and Downloads
