Brand: Altronix
|
SKU:
974757

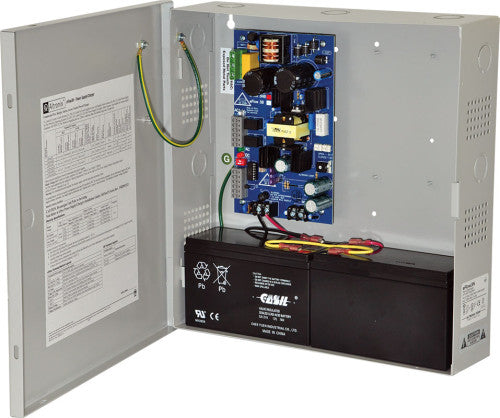

Altronix EFLOW3NV | Power Supply Charger, Single Output, 12/24VDC @ 2A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure
Regular price
$291.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW3NV | Power Supply Charger, Single Output, 12/24VDC @...
Regular price
$291.16
Unit price
Description
Description
Altronix EFLOW3NV | Power Supply Charger, Single Output, 12/24VDC @ 2A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure
Altronix eFlow3NV is a power supply/chargers converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single output. Power supply/charger is selectable for 12VDC or 24VDC with a total of 2A max. They also offer a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep dischargeof stand-by batteries.
Altronix eFlow3NV is a power supply/chargers converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single output. Power supply/charger is selectable for 12VDC or 24VDC with a total of 2A max. They also offer a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep dischargeof stand-by batteries.
Altronix - EFLOW3NV - Features and Specifications
- INPUT
- 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
- Input fuse: 5A/250V.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 12VDC or 24VDC @ 2.0A supply current.
- Auxiliary output rated @ 1A (unswitched).
- Overvoltage protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail and presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
- Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Specifications
Specifications
Altronix - EFLOW3NV - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - EFLOW3NV - Visual Indicators
- Green AC Power LED indicates 220VAC present.
- AC input and DC output LED indicators.
Altronix - EFLOW3NV - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 12 BTU/Hr.
- 24VDC: 25 BTU/Hr.
- System AC input VA requirement: 462VA.
Altronix - EFLOW3NV - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - EFLOW3NV - Weights (approximate)
| Product Weight: | 6.3 Lbs. (2.86 kg). |
|---|---|
| Shipping Weight | 7.2 Lbs. (3.27 kg). |
Altronix - EFLOW3NV - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|
