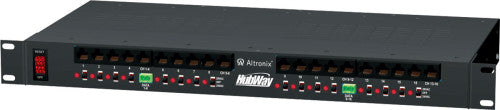

Altronix HUBWAY16DI | UTP Passive Transceiver Hub, 16 Channel, Video up to 750', Integrated 24/28VAC Isolated Power Supply, 115/220VAC, 1U
Altronix HUBWAY16DI | UTP Passive Transceiver Hub, 16 Channel, Video up to 750', Integrated 24/28VAC Isolated Power Supply, 115/220VAC, 1U

Altronix HUBWAY16DI | UTP Passive Transceiver Hub, 16 Channel, Video up to 750', Integrated 24/28VAC Isolated Power Supply, 115/220VAC, 1U

Part Number: ALT-HUBWAY16DI
0 Review(s)
Write a Review
Availability:
$875.85
Retail Price:$953.89
Your Savings:$78.04(8%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

HubWay16Di Passive UTP Transceiver Hub with Integral Isolated Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall, or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. Unit also features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay16Di. In addition, HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • Voltage: 115VAC, 60Hz, 5A or 230VAC, 50Hz, 2.5A.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Outputs

  • PTC protected electronically isolated outputs rated 1A per channel.
  • Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
  • Current: Up to 1A max. per channel, not to exceed a total of 16A maximum current.
  • Other: Surge suppression.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Video

  • Sixteen (16) channels of video over twisted pair up to a distance of 228.6m (750 ft.) per channel.
  • Sixteen (16) 75 Ohm video outputs.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Data

  • RS422/RS485 data inputs.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Indicators (LED)

  • Outputs Sixteen (16) individual power LED indicators.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight18.45 Lbs. (8.37 kg).
Shipping Weight19.75 Lbs. (8.95 kg).



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)https://iq.ulprospector.com/en/profile?e=2863922
cUL Listed For: CSA Standard C22.2 No.1-04, Audio, Video and Similar Equipmenthttps://iq.ulprospector.com/en/profile?e=2863922



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix HUBWAY16DI Data SheetClick to View
Altronix HUBWAY16DI Data SheetClick to View
Altronix HUBWAY16DI Fichas TecnicasClick to View
Altronix HUBWAY16DI Installation InstructionsClick to View
Altronix HUBWAY16DI CAD DrawingClick to View
Altronix HUBWAY16DI Lifetime WarrantyClick to View
