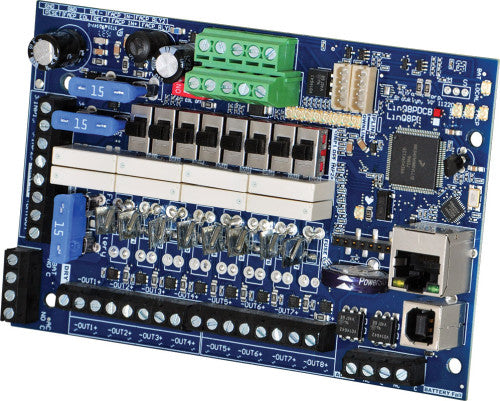

Altronix LINQ8PDCB | Networkable Power Distribution Module, 8 PTC Outputs, Control, Monitor and Report Individual Output Diagnostics
Regular price
$333.13
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix LINQ8PDCB | Networkable Power Distribution Module, 8 PTC O...
Regular price
$333.13
Unit price
Brand: Altronix
|
SKU:
833513
Regular price
$333.13
Unit price
Description
Description
Altronix LINQ8PDCB network power distribution module facilitates monitoring, reporting and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers over the network. It reports diagnostics via Email notifications greatly reducing system downtime and eliminating unnecessary service calls. LINQ8PDCB retrofits with most currently installed multi-output power supply/chargers.
Main Features
- Power Supply(ies) voltage and load limits (High/Low).
- FACP trigger type (wet or dry-N.O./N.C.).
- Input Function (FACP reset/tamper).
- Output Reset Trigger (N.O./N.C.)
- Battery Monitor Configuration:
- Battery condition (Low/Normal/Missing)
- Service Date
- Configurable Output Relay(s)
- Individual Output Configuration:
- Device ID
- Voltage and Current Limits (High/Low)
- FACP Trigger Setting (latching/non-latching/inactive)
- Battery Backup.
Specifications
Specifications
Dimensions (approximate)
- 3.625"W x 5.5"L x 0.96"H (92.07 mm W x 139.7 mm L x 24.38 mm H).
Input Power
- Input1/Input2: 12VAC-28VAC @ 12.5A each or 12VDC/28VDC @ 12.5A each.
- Note: Do not connect AC and DC simultaneously to INP1 and INP2.
Outputs
- Eight (8) PTC protected outputs rated 2.5A.
- Power output(s) can be locally or remotely controlled.
- Surge Suppression.
Status Monitoring
- Power Supply(ies) output voltage and load.
- Voltage and load of each output.
- FACP trigger and reset status.
- Unit temperature (Celsius).
- Power Supply AC and Battery status.
- Battery health.
Network Security
- Secure Socket Layer (SSL).
Weights (approximate)
| Product Weight | 0.4 Lbs. (0.18 kg). |
|---|---|
| Shipping Weight | 0.7 Lbs. (0.32 kg). |
