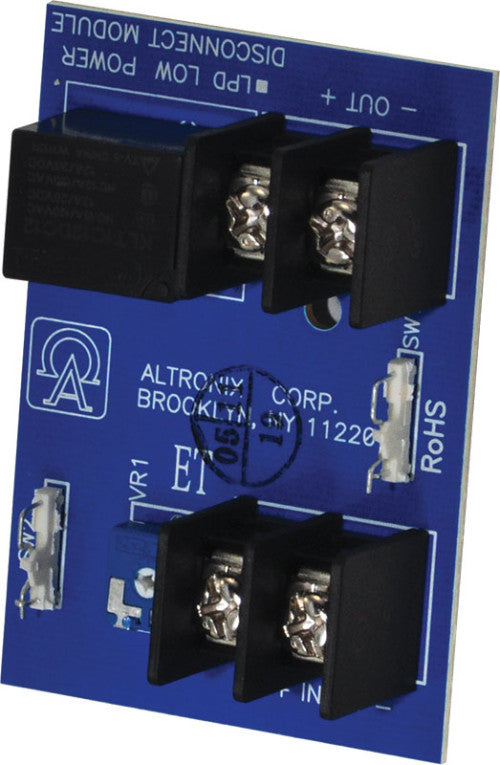

Altronix LPD | Low Power Disconnect Module
Regular price
$19.78
Unit price
Brand: Altronix
|
SKU:
UHG-553043
Regular price
$19.78
Unit price
Description
Description
LPD is a convenient way to add a low battery or low power disconnect feature to any power supply rated up to 8A Threshold is adjustable for added flexibility.
Specifications
Specifications
Dimensions (approximate)
- 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Input
- Input voltage: 12VDC or 24VDC max., 8A.
Operating Voltages
- Low voltage cutoff:
- 12VDC: 10.5 volts ( +/- 0.3 volts)
- 24VDC: 20 volts ( +/- 0.3 volts).
- Restore voltage threshold:
- 12VDC: 11.5 volts ( +/- 0.3 volts)
- 24VDC: 23 volts ( +/- 0.3 volts).
Relay
- Relay contact rating 8A max.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 0.12 Lbs. (0.05 kg). |
|---|---|
| Shipping Weight | 0.15 Lbs. (0.07 kg). |
Documents and Downloads
Documents and Downloads
- Altronix LPD Data Sheet
- Altronix LPD Data Sheet
- Altronix LPD Fichas Tecnicas
- Altronix LPD Installation Instructions prior to Dec. 6, 2016
- Altronix LPD Altronix_LPD_Power_Disconnect_Module_Installation_Instructions.pdf
- Altronix LPDGuia de Instalacion
- Altronix LPD CAD Drawing
- Altronix LPD Mounting Diagram
- Altronix LPD Lifetime Warranty
