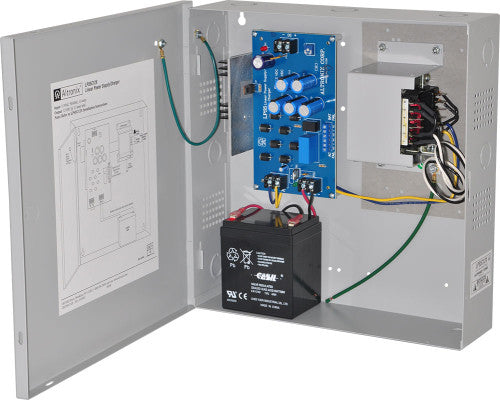

Altronix LPS5C12X | Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 12VDC @ 3.5A, 115VAC, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to one (1) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• 115VAC 50/60Hz rated @ 1.6A.

Output

• 12VDC output.
• 3.5A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery

• Battery leads included.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails (zero voltage drop).
• PTC battery protection.

Visual Indicators

• AC/DC power LED indicator.

Supervision

• Low battery and AC fail supervision (dry relay outputs 1A @ 28VDC).

Weights (approximate)
