Brand: Altronix | SKU: 514185

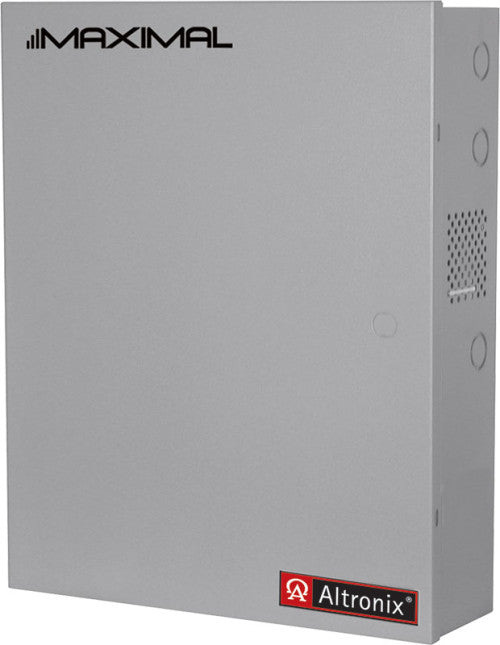

Altronix MAXIMAL13E | Power Supply/Charger, Expand able, Dual 12/24VDC outputs, 1 P/S @ 3.5A & 1 P/S @ 6A, 115VAC, BC800 Enclosure

$951.59

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Maximal13E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable UL Listed sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to four (4) 12VDC/12AH Batteries.
Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC 60Hz, 5.0A input.

Output

12VDC and/or 24VDC outputs
Maximum output current Options:
A) 12VDC @ 4A plus 12VDC @ 6A.
B) 24VDC @ 3A plus 24VDC @ 6A.
C) 12VDC @ 4A plus 24VDC @ 6A.
D) 24VDC @ 3A plus 12VDC @ 6A.
Class 2 Rated power limited output (AL400ULXB only).
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.

Fuse Ratings

Power Supply input fuse rated @ 3.5A/250V.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when unit switches over to battery backup (AC failure condition).

Weights (approximate)

Product Weight	42.3 Lbs. (19.186 kg).
Shipping Weight	46.3 Lbs. (21 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment	https://iq.ulprospector.com/en/profile?e=152141
