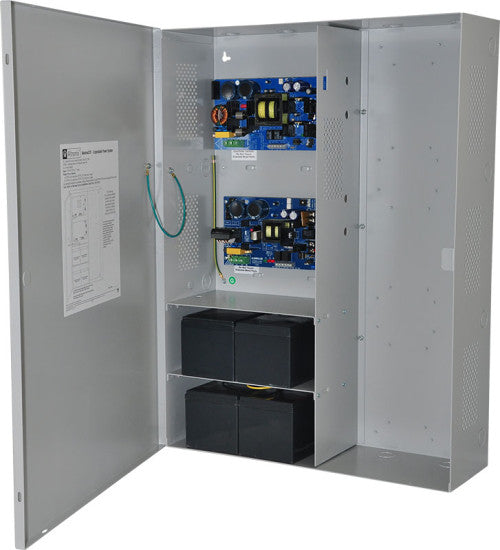

Altronix MAXIMAL33E | Power Supply Charger, Expand able, Dual 12/24VDC outputs @ 6A each, 115VAC, BC800 Enclosure
Altronix MAXIMAL33E | Power Supply Charger, Expand able, Dual 12/24VDC outputs @ 6A each, 115VAC, BC800 Enclosure

Altronix MAXIMAL33E | Power Supply Charger, Expand able, Dual 12/24VDC outputs @ 6A each, 115VAC, BC800 Enclosure

Part Number: ALT-MAXIMAL33E
0 Review(s)
Write a Review
Availability:
$426.75
Retail Price:$451.11
Your Savings:$24.36(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Maximal33E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
  • 1/2" and 3/4" combination knockouts.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • 115VAC 60Hz, 7.0A input.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

  • 12VDC and/or 24VDC outputs
  • Maximum output current Options:
  • A) 12VDC @ 6A plus 12VDC @ 6A.
  • B) 24VDC @ 6A plus 24VDC @ 6A.
  • C) 12VDC @ 6A plus 24VDC @ 6A.
  • Filtered and electronically regulated outputs (built-in power supply).
  • Thermal and short circuit protection with auto reset.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Fuse Ratings

  • Power Supply input fuse rated @ 3.5A/250V.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Supervision

  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery and battery presence supervision (form "C" contact).



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Zero voltage drop when unit switches over to battery backup (AC failure condition).



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight43.5 Lbs. (19.731 kg).
Shipping Weight47.5 Lbs. (21.545 kg).



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Agency Listings

UL Listed For: Access Control System Units (UL294)https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipmenthttps://iq.ulprospector.com/en/profile?e=152141



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix MAXIMAL33E Data SheetClick to View
Altronix MAXIMAL33E Data SheetClick to View
Altronix MAXIMAL33E Fichas TecnicasClick to View
Altronix MAXIMAL33E Installation Instructions prior to Jan. 10, 2015Click to View
Altronix MAXIMAL33E Altronix_MAXIMAL33E_Power_Supply_Installation_Instructions.pdfClick to View
Altronix MAXIMAL33EGuia de InstalacionClick to View
Altronix MAXIMAL33E CAD DrawingClick to View
Altronix MAXIMAL33E Revit FileClick to View
Altronix MAXIMAL33E Lifetime WarrantyClick to View
