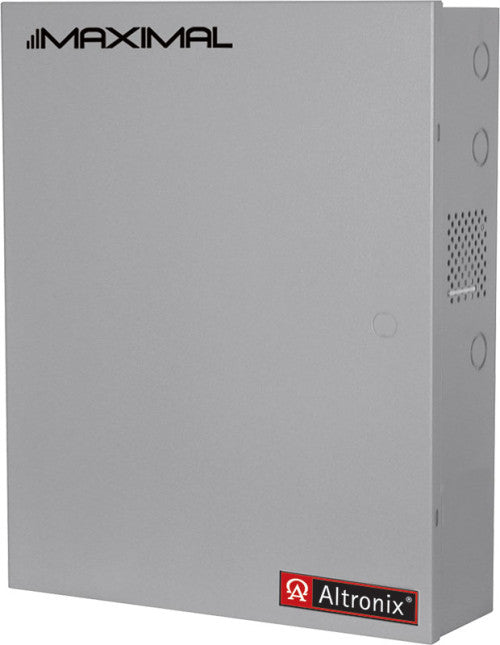

Altronix MAXIMAL55E | Power Supply Charger, Expand able, Dual 12VDC outputs @ 9.5A each, 115VAC, BC800 Enclosure
Altronix MAXIMAL55E | Power Supply Charger, Expand able, Dual 12VDC outputs @ 9.5A each, 115VAC, BC800 Enclosure

Altronix MAXIMAL55E | Power Supply Charger, Expand able, Dual 12VDC outputs @ 9.5A each, 115VAC, BC800 Enclosure

Part Number: ALT-MAXIMAL55E
0 Review(s)
Write a Review
Availability:
$433.61
Retail Price:$458.35
Your Savings:$24.74(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
  • 1/2" and 3/4" combination knockouts.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • 115VAC 60Hz, 5.2A input.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

  • 12VDC outputs
  • Maximum output current Options:
  • A) 12VDC @ 10A plus 12VDC @ 10A.
  • Filtered and electronically regulated outputs (built-in power supply).
  • Thermal and short circuit protection with auto reset.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Fuse Ratings

  • Power Supply input fuse rated @ 3.5A/250V.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Supervision

  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery and battery presence supervision (form "C" contact).



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Zero voltage drop when unit switches over to battery backup (AC failure condition).



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight43.5 Lbs. (19.73 kg).
Shipping Weight47.5 Lbs. (21.55 kg).



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Agency Listings

UL Listed For: Access Control System Units (UL294)https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipmenthttps://iq.ulprospector.com/en/profile?e=152141



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix MAXIMAL55E Data SheetClick to View
Altronix MAXIMAL55E Data SheetClick to View
Altronix MAXIMAL55E Fichas TecnicasClick to View
Altronix MAXIMAL55E Installation Instructions prior to Jan. 10, 2015Click to View
Altronix MAXIMAL55E Altronix_MAXIMAL55E_Power_Supply_Installation_Instructions.pdfClick to View
Altronix MAXIMAL55EGuia de InstalacionClick to View
Altronix MAXIMAL55E CAD DrawingClick to View
Altronix MAXIMAL55E Revit FileClick to View
Altronix MAXIMAL55E Lifetime WarrantyClick to View
