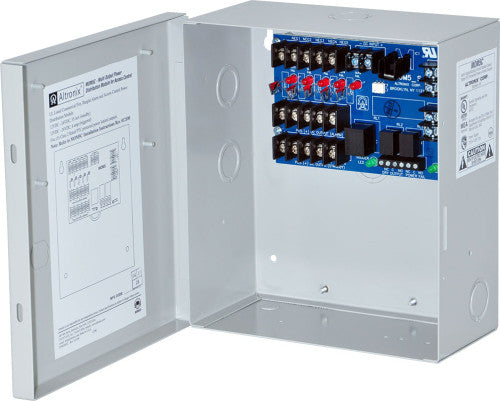

Altronix MOM5C | Multi-Output Distribution Module, 5 PTC Class 2 Outputs, FAI, BC100
Regular price
$117.61
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MOM5C | Multi-Output Distribution Module, 5 PTC Class 2 Ou...
Regular price
$117.61
Unit price
Brand: Altronix
|
SKU:
553042
Regular price
$117.61
Unit price
Description
Description
Altronix MOM5C power distribution module converts one (1) non power-limited DC voltage input to five (5) power-limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (NO) or normally closed (NC) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 12VDC or 24VDC from power supply.
Output
- 12VDC or 24VDC selectable outputs.
- Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
- Current limit is 2A @ 12VDC or 24VDC per output.
Fire Alarm Interface
- Fire Alarm Panel or Access Control System trigger inputs, (N.O. or N.C. supervised trigger input and polarity reversal trigger input).
Visual Indicators
- Red LED's indicate condition of each power output.
- Power & input trigger LED's.
Supervision
- Fire Alarm Panel or Access Control System trigger inputs. (NO or NC supervised trigger input and polarity reversal trigger input).
- Power fail supervision relay (Form "C" contact rated 1A @ 28VDC).
- Interfaces with most UL Listed Power Supplies
Weights (approximate)
| Product Weight | 4.1 Lbs. (1.85 kg). |
|---|---|
| Shipping Weight | 4.8 Lbs. (2.18 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1606 |
|---|---|
| cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481) | https://iq.ulprospector.com/en/profile?e=153662 |
