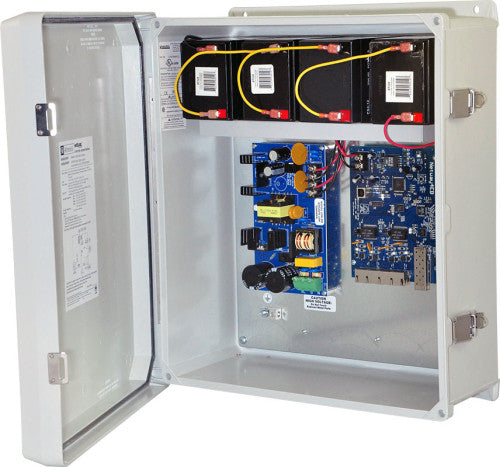

Altronix NETWAY4EWPX | Single 1G Fiber SFP, 4 port 10/100/1000 PoE/PoE+ configurable for 2x 60W Hi-PoE; Hardened 120W Power Supply/Battery Charger & Switch Boards mounted in larger NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
Regular price
$995.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY4EWPX | Single 1G Fiber SFP, 4 port 10/100/1000 PoE/...
Regular price
$995.36
Unit price
Description
Description
Altronix NetWay4EWPX Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.
Specifications
Specifications
Enclosure
- NEMA 4/IP 66 Rated enclosure for outdoor use.
- Accommodates up to four (4) 12VDC/4AH Batteries.
- Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Input
- 115VAC 60 Hz, 3A or 230VAC 50/60 Hz, 1.65A.
Power Output
- Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- 120W total power.
- Integral surge protection.
Fiber Port
- One (1) Gigabit SFP port.
Ethernet Ports
- Four (4) 10/100/1000 Mbps ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Weights (approximate)
| Product Weight | 15 Lbs. (6.8 kg). |
|---|---|
| Shipping Weight | 17.5 Lbs. (7.9 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment (UL60950-22) | https://iq.ulprospector.com/en/profile?e=3010301 |
