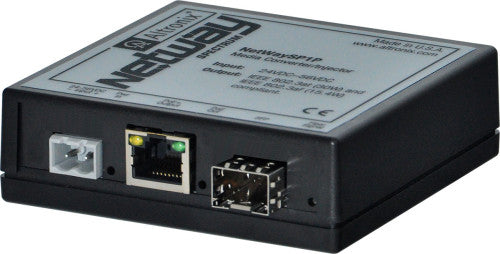

Altronix NETWAYSP1P | Powered Media Converter/Injector
Regular price
$289.90
Unit price
Brand: Altronix
|
SKU:
919537
Regular price
$289.90
Unit price
Description
Description
Altronix NetWaySP1P media converter/injector converts Fiber (1000Base-X/SX/LX) to 10/100/1000 Mbps Ethernet and provides PoE/PoE+ power to a connected device.
Specifications
Specifications
Enclosure
- Modular plastic case.
- Dimensions 3.8"W x 1"H x 3.38"D (97 mm W x 25 mm H x 86 mm D).
Input
- 24VDC @ 1.5A, 56VDC @ 0.75A (30W / PoE+).
- 24VDC @ 1.0A, 56VDC @ 0.5A (15W / PoE).
Output
- Unit provides PoE / PoE+, up to 30W max.
- IEEE 802.3af and IEEE 802.3at compliant.
- Short circuit protection.
Fiber Port
- One (1) 1Gb SFP port.
- Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet
- IEEE 802.3at (30W) compliant.
- Wire type: 4-pair CAT5e and higher.
- Connectivity: RJ45, auto-crossover.
- Speed: 10/100/1000 Mbps.
- Distance: up to 100m.
Indicators (LED)
- Yellow/Green LEDs:
- IP Link status, 10/100/1000 Base-T/active.
- Green Pwr In LED:
- Indicates unit is powered.
- Green PoE LED:
- Indicate PoE present.
- Green SFP (Fiber) LED:
- Indicates SFP connection.
Weights (approximate)
| Product Weight | 0.25 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.14 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
