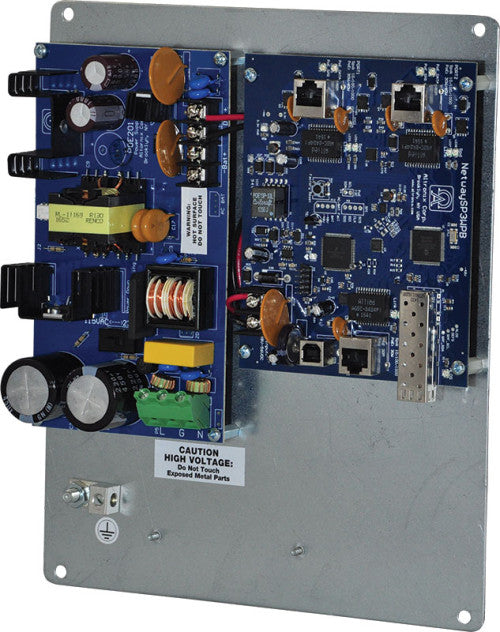

Altronix NETWAYSP3PL | Single 1G Fiber SFP, 3 port 10/100/1000 (2 ports PoE/PoE+ 60W Hi-PoE & 1 port PoE/PoE+); Hardened 120W Power Supply/BatChgr & Switch Boards mounted on Backplane; LINQ
Regular price
$760.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP3PL | Single 1G Fiber SFP, 3 port 10/100/1000 (2 p...
Regular price
$760.28
Unit price
Description
Description
Altronix NetWaySP3PL Ethernet over Fiber PoE+ Hardened Switches provide a 1Gb SFP port and three (3) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere.
Specifications
Specifications
Dimensions (approximate)
- 10.75"W x 8.875"L x 2.375"H (273.05 mm W x 225.42 mm L x 60.32 mm H).
Input
- 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Power Output
- Three (3) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- 120W total power.
- Integral surge protection.
Fiber Port
- One (1) Gigabit SFP port.
- Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet
- Three (3) 10/100/1000 Mbps ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Weights (approximate)
| Product Weight | 2.6 Lbs. (1.18 kg). |
|---|---|
| Shipping Weight | 4 Lbs. (1.81 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-22) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
