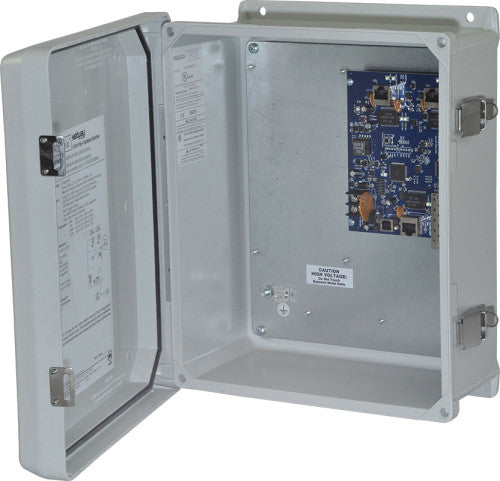

Altronix NETWAYSP3WPN | Single 1G Fiber SFP, 3 port 10/100/1000 (2 ports PoE/PoE+ 60W Hi-PoE & 1 port PoE/PoE+); Hardened, Switch Board mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ

Enclosure

• NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
• Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).

Input

• 48-55V UL Listed ITE power supply (up to 120W)

Power Output

• Maximum Power 120W total power:
• Two (2) 60W ports (PoE/PoE+ / Hi-PoE).
• One (1) 30W port (PoE/PoE+).
• 10/100/1000 Mbps each port.
• IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
• Integral surge protection.

Fiber Port

• One (1) Gigabit SFP port.

Ethernet Ports

• Three (3) 10/100/1000 Mbps ports.
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Indicators (LED)

• Individual PoE On LEDs for each port.
• Individual IP Link status, 10/100Base-T/active LEDs for each port.
• ALOS LED indicates fiber connection for SFP port.
• Heartbeat LED indicates proper operation of the unit.

Weights (approximate)

Agency Listings
