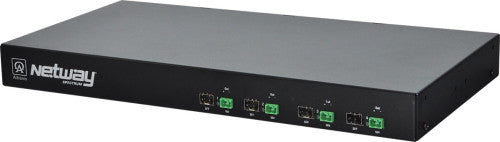

Altronix NETWAYSP4 | 4-port Ethernet over Fiber Media Converter For conventional Fiber or composite Fiber (powered) cable applications

Enclosure

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Input

• Voltage Input option 1: 48-56V: UL Listed ITE power supply, e.g. VertiLine563 (2 x 56V / 150W ports).
• Input option 2: PoE+ (30W) or Hi-PoE (60W).

Output

• Maximum Power Up to 120W max power per port (240W total power; external power supply required).
• 30W per port with PoE+ input (midspan) or 60W (Hi-PoE).
• Outputs are Class 2 power-limited when powered by PoE, PoE+, Hi-PoE unit or UL Listed power-limited supply.

Fiber Ports

• Four (4) 1Gb SFP ports.

Temperature

• Operating: (120W): - 40° C to 50° C ( - 40° F to 122° F).
• Storage: - 40° C to 85° C ( - 40° F to 185° F).
• Relative Humidity: 85% +/- 5%.
• Operating Altitude: - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).

Weights (approximate)

Agency Listings
