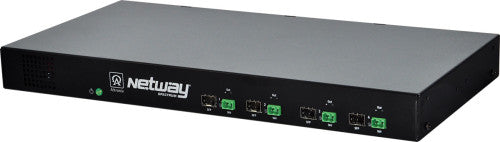

Altronix NETWAYSP4P | 4-port Fiber Optic Transceivers with Built-In Power Supplies for conventional Fiber or composite Fiber (powered) Cable Application

Enclosure

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Input

• 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2A.

Power

• Four (4) 56VDC non power-limited outputs up to 120W max. full power per port (240W total power).
• IEEE 802.3af and IEEE 802.3at compliant (PoE/PoE+).
• Short circuit protection.

Fiber Port

• Four (4) Gigabit SFP ports.
• Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet

• Four (4) ports to switch.
• Wire type: 4-pair CAT5e and higher.
• Connectivity: RJ45, auto-crossover.
• Speed: 10/100/1000Mbps.
• Distance: up to 100m.

Battery Backup

• Built-in battery charger (optional rack mount battery enclosure - RE2).
• Automatic switchover to stand-by battery when AC fails.

Weights (approximate)

Agency Listings
