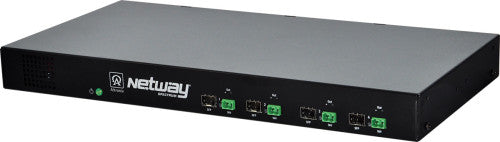

Altronix NETWAYSP4P2 | 4-port Fiber Optic Transceivers with Built-In Power Supplies for conventional Fiber or composite Fiber (powered) Cable Application; Class 2
Regular price
$2,181.71
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP4P2 | 4-port Fiber Optic Transceivers with Built-I...
Regular price
$2,181.71
Unit price
Brand: Altronix
|
SKU:
1030407
Regular price
$2,181.71
Unit price
Description
Description
Altronix NetWaySP4P2 Fiber Optic Transceivers provide four (4) 1Gb SFP ports and four (4) power - limited ports for up to 60W per port (240W total power) to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches. NetWaySP4P2 can be used for standard fiber cable applications as well.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Input
- 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2A.
Power
- Four (4) 56VDC power-limited outputs up to 60W max. full power per port (240W total power).
- Short circuit protection.
Fiber Port
- Four (4) Gigabit SFP ports.
- Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet
- Four (4) ports to switch.
- Wire type: 4-pair CAT5e and higher.
- Connectivity: RJ45, auto-crossover.
- Speed: 10/100/1000Mbps.
- Distance: up to 100m.
Battery Backup
- Built-in battery charger (optional rack mount battery enclosure - RE2).
- Automatic switchover to stand-by battery when AC fails.
Weights (approximate)
| Product Weight | 3.8 Lbs. (1.7 kg). |
|---|---|
| Shipping Weight | 6 Lbs. (2.7 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
