Brand: Altronix | SKU: 936793

Altronix NETWAYSP4WPX | Dual 1G Fiber SFP, 4 port 10/100/1000 PoE/PoE+ configurable for 2x 60W Hi-PoE; Hardened 120W Power Supply/Battery Charger & Switch Boards mounted in larger NEMA4/4X, IP66 rated Outdoor enclosure; LINQ

$1,175.43

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

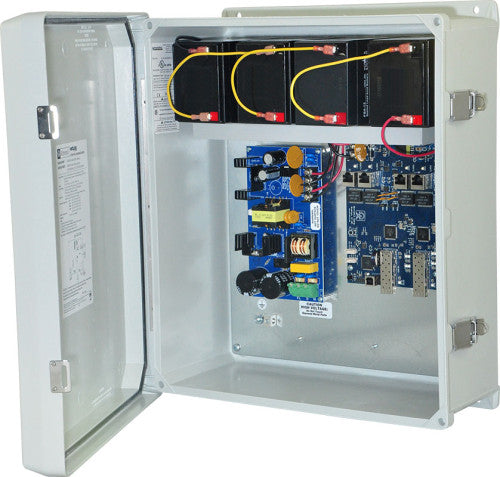

Altronix NetWaySP4WPX Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

Specifications

Enclosure

NEMA 4/IP 66 Rated enclosure for outdoor use.
Accommodates up to four (4) 12VDC/4AH Batteries.
Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).

Input

115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Fusing: 5A/250V.

Power Output

Four (4) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
120W total power.
Integral surge protection.

Fiber Port

Two (2) Gigabit SFP ports.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet Ports

Four (4) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Battery Backup (not included)

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Weights (approximate)

Product Weight	15 Lbs. (6.8 kg).
Shipping Weight	17.5 Lbs. (7.9 kg).

Agency Listings

UL Listed For: Information Technology Equipment (UL60950-1)	https://iq.ulprospector.com/en/profile?e=3010301
cUL Listed For: Information Technology Equipment (UL60950-22)	https://iq.ulprospector.com/en/profile?e=3010301
