Brand: Altronix
|
SKU:
1030414
Altronix OLS20E | Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 115VAC, Board
Regular price
$151.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix OLS20E | Power Supply Charger, Single Output, 12VDC 1A or ...
Regular price
$151.65
Unit price
Description
Description
Altronix OLS20E | Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 115VAC, Board
Altronix OLS20E power supply/charger converts 115VAC 50/60Hz inputinto a 12VDC @ 1A or 24VDC @ 0.5A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of application for access control and security system accessories that require additional power.
Altronix OLS20E power supply/charger converts 115VAC 50/60Hz inputinto a 12VDC @ 1A or 24VDC @ 0.5A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of application for access control and security system accessories that require additional power.
Altronix - OLS20E - Features and Specifications
- INPUT
- 115VAC, 50/60Hz, 0.5A.
- OUTPUT
- 12VDC or 24VDC selectable operation.
- 0.5A continuous supply current @ 24VDC*; 1A continuous supply current @ 12VDC*.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current 0.3A.
- Automatic switch over to stand-by battery when AC fails.
- Battery leads included.
- AC input and DC output LED indicators.
- Includes battery leads.
Specifications
Specifications

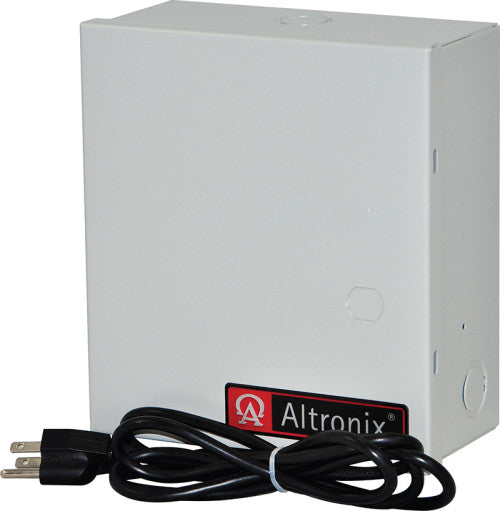

Altronix - OLS20E - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - OLS20E - Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF).
- Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.): 6 BTU/Hr.
Altronix - OLS20E - Specifications
| Amps | 0.5 TO 1.0 |
|---|---|
| Product Type | PLUG-IN POWER SUPPLY - NO ENCLOSURE |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Sales Category | POWER SUPPLY |
| Output Voltage | SELECTABLE 12 OR 24 VOLTS DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
Altronix - OLS20E - Weights (approximate)
| Product Weight: | 3.3 Lbs. (1.5 kg). |
|---|---|
| Shipping Weight | 4.3 Lbs. (1.95 kg). |
