Brand: Altronix | SKU: 518909

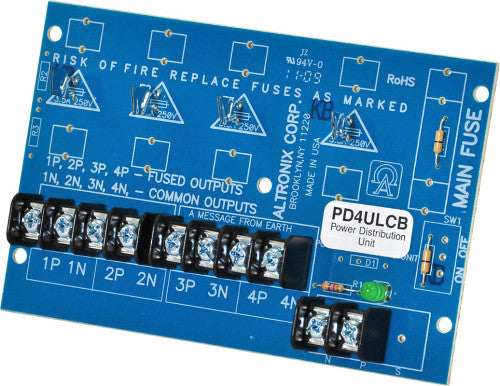

Altronix PD4ULCB | Power Distribution Module, 4 PTC Outputs up to 28VAC/VDC, Board

$33.95

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix PD4ULCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into four (4) PTC protected Class 2 Rated powerlimited outputs.

Main Features

Power LED indicator.

Specifications

Dimensions (approximate)

3.25"W x 5.25"L x 1"H (82.55 mm W x 133.35 mm L x 25.4 mm H).

Input

12VDC or 24VDC up to 10A (total output current should not exceed max current rating of power supply employed).

Output

Four (4) PTC protected Class 2 Rated power limited outputs.
PTCs rated @ 2A/250V.
Surge suppression.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.15 Lbs. (0.07 kg).
Shipping Weight	0.25 Lbs. (0.11 kg).

Agency Listings

UL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603)	https://iq.ulprospector.com/en/profile?e=2087
