Brand: Altronix | SKU: 720493

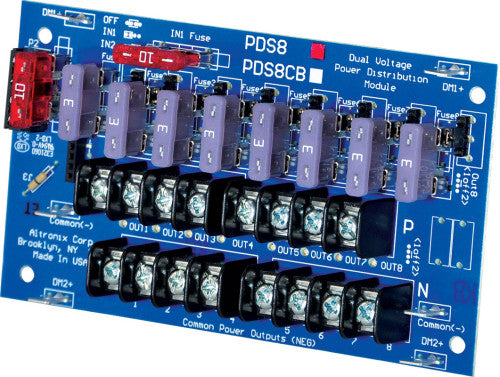

Altronix PDS8 | Dual Input Power Distribution Module, 8 Fused Outputs

$57.44

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

PDS8 dual input power distribution modules are designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) fused protected outputs.

Specifications

Dimensions (approximate)

1"W x 5.375"L x 3"H (25.4 mm W x 136.5 mm L x 76.2 mm H).

Power Inputs

Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 10A each or 16VAC to 28VAC up to 14A each.

Outputs

Any of the eight (8) fuse protected power outputs are selectable to follow power input 1 or input 2.
Individual outputs may be set to OFF position for servicing
Output ratings:
PDS8 - fuse protected outputs rated @ 3A (total output current should not exceed max current rating of power supply employed).
Surge suppression.

Fuse Ratings

Output fuses rated @ 3A each.
Main input fuses rated @ 10A each.

LED Indicators

Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.4 Lbs. (0.18 kg).
Shipping Weight	0.5 Lbs. (0.23 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CAN/ULC - s319-05, Electronic Access Control Systems.	https://iq.ulprospector.com/en/profile?e=1659
