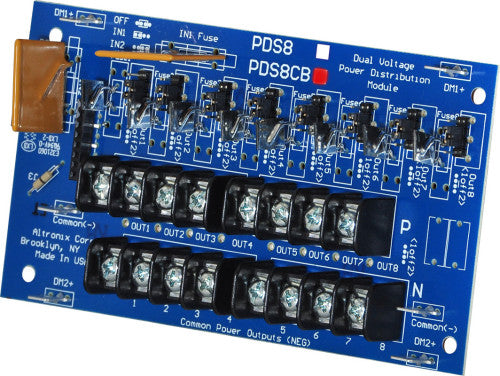

Altronix PDS8CB | Dual Input Power Distribution Module, 8 PTC Outputs

$57.44

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.

Specifications

Dimensions (approximate)

1"W x 5.375"L x 3"H (25.4 mm W x 136.5 mm L x 76.2 mm H).

Power Inputs

Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.

Outputs

Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
Surge suppression.

LED Indicators

Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.4 Lbs. (0.18 kg).
Shipping Weight	0.5 Lbs. (0.23 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CAN/ULC - s319-05, Electronic Access Control Systems.	https://iq.ulprospector.com/en/profile?e=1659
