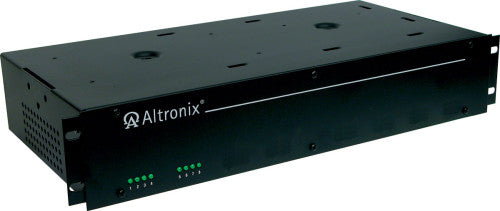

Altronix R248600 | CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 2...
Regular price
$606.16
Unit price
Brand: Altronix
|
SKU:
730572
Regular price
$606.16
Unit price
Description
Description
R248600 Rack Mount CCTV Power Supply provides 24 or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Eight (8) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
- Spare fuses provided.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- 115VAC, 50/60Hz, 6A.
Output
- Eight (8) fuse protected outputs.
- 24VAC @ 28A (600VA) supply current (3.5A per device, 3.5A max.) or 28VAC @ 25A (600VA) supply current (3.125A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VDC: 307 BTU/Hr.
- 28VDC: 287 BTU/Hr.
- System AC input VA requirement: 690VA.
Weights (approximate)
| Product Weight | 23 Lbs. (10.43 kg). |
|---|---|
| Shipping Weight | 24 Lbs. (10.89 kg). |
