Brand: Altronix
|
SKU:
10134821

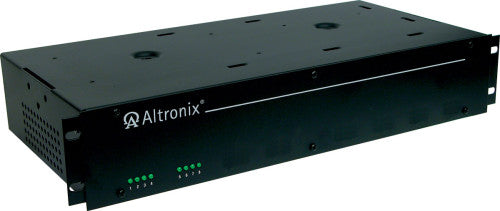

Altronix R615DC8CB220 | CCTV Power Supply, 8 PTC Class 2 Outputs, 6-15VDC @ 4A, 220VAC, 2U
Regular price
$446.28
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix R615DC8CB220 | CCTV Power Supply, 8 PTC Class 2 Outputs, 6...
Regular price
$446.28
Unit price
Brand: Altronix
|
SKU:
10134821
Regular price
$446.28
Unit price
Description
Description
R615DC8CB220 provides 6-15VDC distributed via eight (8) PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Main Features
- Eight (8) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- 220VAC, 50/60Hz, 0.5A.
Output
- Eight (8) PTC protected auto-resettable outputs.
- 6-15VDC @ 4A total output current. (0.5A per device, 2.5A max.)
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Temperature
- Operating temperature: 0° C to 49° C ( 32° F to 120° F).
- Storage temperature: -20° C to 70° C ( -4°F to 158° F).
- BTU/Hr. (approx., depending on output): 14-36 BTU/Hr.
- Relative Humidity 85% +/-5%
- System AC input VA requirement: 110VA.
Weights (approximate)
| Product Weight | 13.65 Lbs. (6.19 kg). |
|---|---|
| Shipping Weight | 14.65 Lbs. (6.65 kg). |
