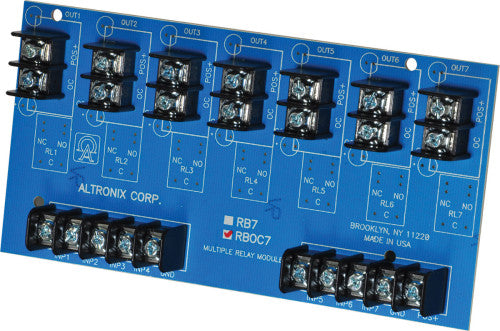

Altronix RBOC7 | Relay Module, Open Collector, 7 - 12/24VDC
Altronix RBOC7 | Relay Module, Open Collector, 7 - 12/24VDC

Altronix RBOC7 | Relay Module, Open Collector, 7 - 12/24VDC

Part Number: ALT-RBOC7
0 Review(s)
Write a Review
Availability:
$53.63
Retail Price:$56.68
Your Savings:$3.05(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

The RBOC7 Open Collector Module incorporates seven (7) open collector outputs capable of sinking 100mA which can be activated via positive (+) low current trigger inputs.


https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions (approximate)

  • 3.25"W x 6.5"L x 1"H (82.55 mm W x 165.1 mm L x 25.4 mm H).



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input Voltage

  • 12VDC or 24VDC operation.
  • Seven (7) independent (3VDC to 24VDC @ 2mA minimum) positive inputs.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Outputs

  • Seven (7) open collector outputs capable of sinking 100mA each.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Temperature

  • Operating -25ºC to 55ºC ( -13ºF to 131ºF).
  • Storage -25ºC to 70ºC ( -13ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight0.1 Lbs. (0.05 kg).
Shipping Weight0.15 Lbs. (0.07 kg).



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix RBOC7 Data SheetClick to View
Altronix RBOC7 Data SheetClick to View
Altronix RBOC7 Fichas TecnicasClick to View
Altronix RBOC7 Installation InstructionsClick to View
Altronix RBOC7 Altronix_RBOC7_Relay_Module_Guia_de_Instalacion.pdfClick to View
Altronix RBOC7 CAD DrawingClick to View
Altronix RBOC7 Mounting DiagramClick to View
Altronix RBOC7 Lifetime WarrantyClick to View
