Brand: Altronix | SKU: 312999

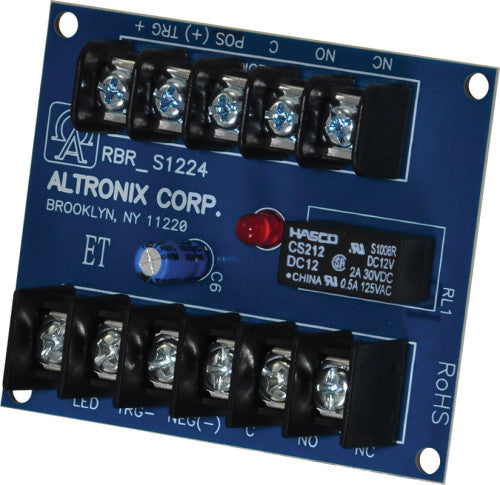

Altronix RBR1224 | Relay Module, Toggle/Ratchet Relay, 12/24VDC, DPDT @.5A - 120VAC or 2A - 28VDC

$32.63

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

RBR1224 Electronic Toggle/Ratchet Relay works with PGM alarm control panels, door control, keypads and more. The RBR1224 is snap track mountable.

Specifications

Dimensions (approximate)

2.5"W x 3"L x 1"H (63.5 mm W x 76.2 mm L x 25.4 mm H).

Input Voltage

12VDC to 24VDC operation.
Current draw: 20mA.

Trigger Input

Positive (+) or negative (-) ultra sensitive trigger (3VDC to 24VDC @ 20mA minimum).

Contact Rating

DPDT contacts rated at 0.5A/120VAC or 2 A/28VDC.

LED Indicators

Relay status LED.
Remote LED status output.

Temperature

Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
Relative Humidity 85% +/-5%.

Weights (approximate)

Product Weight	0.15 Lbs. (0.06 kg).
Shipping Weight	0.25 Lbs. (0.11 kg).
