Altronix RBUL | Relay Module, Ultra Sensitive, 12/24VDC, SPDT Conta...
Regular price
$17.14
Unit price
Brand: Altronix
|
SKU:
553032
Regular price
$17.14
Unit price
Description
Description

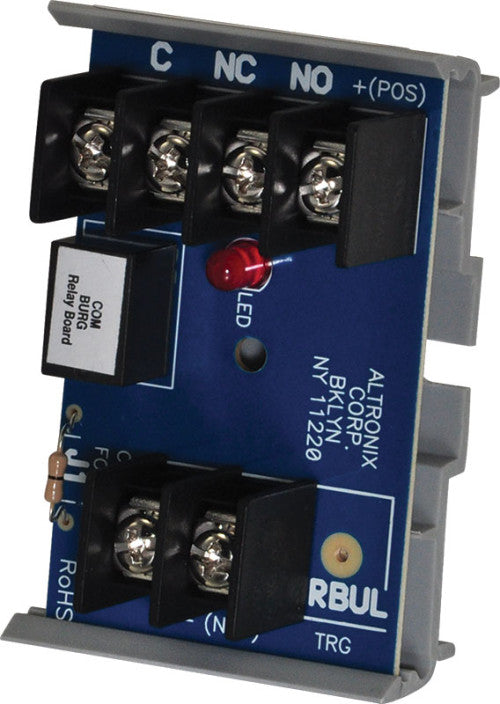

RBUL sensitive relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Specifications
Specifications
Dimensions (approximate)
- 2"W x 2.75"L x 1"H (50.08 mm W x 69.85 mm L x 25.4 mm H).
Input Voltage
- 12VDC or 24VDC operation.
- Current draw: 30mA.
Contact Rating
- 1A/28VDC SPDT contacts.
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement:
- 12VDC: 3.6VA.
- 24VDC: 7.2VA.
Weights (approximate)
| Product Weight | 0.1 Lbs. (0.05 kg). |
|---|---|
| Shipping Weight | 0.15 Lbs. (0.07 kg). |
Agency Listings
| UL Listed For: Burglar Alarm System Accessory (UL365) | https://iq.ulprospector.com/en/profile?e=2025 |
|---|
