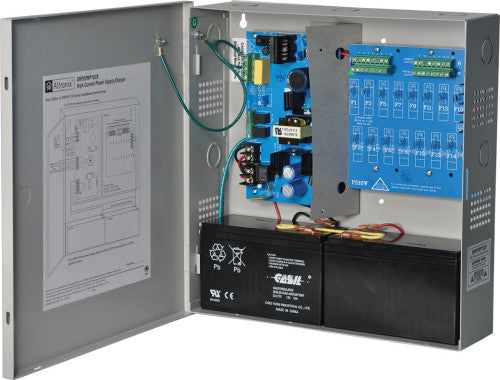

Altronix SMP5PMP16CB | Power Supply Charger, 16 PTC Outputs, 12/24VDC @ 4A, 115/220VAC, Supervision, BC300 Enclosure
Altronix SMP5PMP16CB | Power Supply Charger, 16 PTC Outputs, 12/24VDC @ 4A, 115/220VAC, Supervision, BC300 Enclosure

Altronix SMP5PMP16CB | Power Supply Charger, 16 PTC Outputs, 12/24VDC @ 4A, 115/220VAC, Supervision, BC300 Enclosure

Part Number: ALT-SMP5PMP16CB
0 Review(s)
Write a Review
Availability:
$188.99
Retail Price:$199.78
Your Savings:$10.79(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

SMP5PMP16CB is a multi-output power supply/charger that converts a 115VAC/230VAC, 50/60Hz input into sixteen (16) 12VDC or 24VDC outputs.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

  • 12VDC or 24VDC selectable output.
  • 4A supply current.
  • Sixteen (16) PTC protected outputs (auto-resettable).
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Visual Indicators

  • AC input and DC output LED indicators.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight8.7 Lbs. (3.946 kg).
Shipping Weight10.1 Lbs. (4.581 kg).



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix SMP5PMP16CB Data SheetClick to View
Altronix SMP5PMP16CB Data SheetClick to View
Altronix SMP5PMP16CB Fichas TecnicasClick to View
Altronix SMP5PMP16CB Installation InstructionsClick to View
Altronix SMP5PMP16CB Altronix_SMP5PMP16CB_Power_Supply_Guia_de_Instalacion.pdfClick to View
Altronix SMP5PMP16CB CAD DrawingClick to View
Altronix SMP5PMP16CB Revit FileClick to View
Altronix SMP5PMP16CB Lifetime WarrantyClick to View
