Altronix T1618300K | Open Frame Transformer Kit, 16/18VAC @ 300VA, ...
Regular price
$159.77
Unit price
Brand: Altronix
|
SKU:
10011230
Regular price
$159.77
Unit price
Description
Description

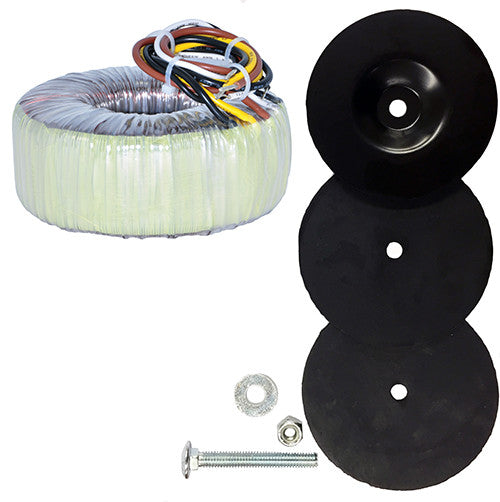

Altronix T1618300K | Open Frame Transformer Kit, 16/18VAC @ 300VA, 115VAC
Altronix T1618300K open frame transformer kit provides power for electronic power supplies and equipment including security, access control, and surveillance devices. It includes T1618300 transformer and mounting hardware for TKH2 backplane.
Altronix T1618300K open frame transformer kit provides power for electronic power supplies and equipment including security, access control, and surveillance devices. It includes T1618300 transformer and mounting hardware for TKH2 backplane.
Altronix - T1618300K - Features and Specifications
- INPUT
- 115VAC 50/60 Hz, 2.7A.
- OUTPUT
- 16VAC/300VA (18.7A) or 18VAC/300VA (16.7A) supply current.
Specifications
Specifications
Altronix - T1618300K - Dimensions (approximate)
- 5"W x 5"L x 3.35"H (127 mm W x 127 mm L x 85.1 mm H).
Altronix - T1618300K - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 154 BTU/Hr.
Altronix - T1618300K - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T1618300K - Weights (approximate)
| Product Weight: | 6.95 Lbs. (3.15 kg). |
|---|---|
| Shipping Weight | 7.55 Lbs. (3.42 kg). |
